PNC380s PoC Portable Radio

>Broadband/LTE         >Portable Radio

> Push to talk over Cellular

Hytera Horizon PoC Subscription Service

AT&T Network Approved PTT over Cellular Radio

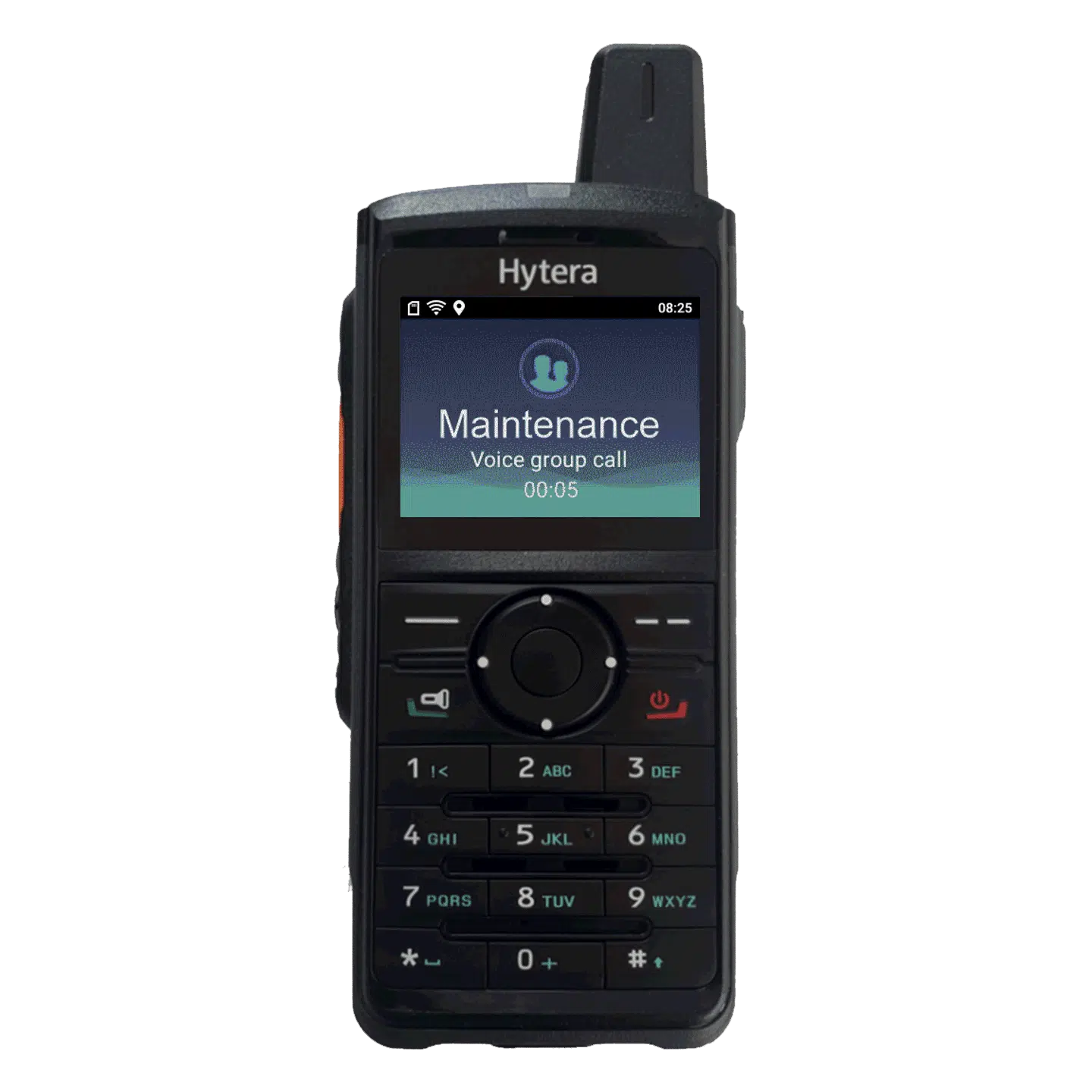

The Hytera PNC380S PoC device is a compact, rugged, and easy-to-operate handheld radio that utilizes Wi-Fi and existing nationwide 4G/LTE cellular networks for unlimited coverage and capacity. The PNC380S is designed for reliable business communications with instant group calling in the vehicle and on the job site. It is built based on an AT&T Certified LTE Module and has T-Mobile IoT Network Certification. The PNC380S can be quickly deployed without the significant infrastructure costs of traditional radio systems.
  • Nationwide Coverage with 4G/LTE Networks
  • AT&T and T-Mobile Network Approved Device
  • Industry leading voice quality with AI-based digital noise suppression
  • Supports dispatching, group calling, and location tracking
  • Voice, Video, and Text communications
  • Compact and rugged devices that are easy to use
  • Car Kit available for safe use in vehicles.
The PNC380S enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The PNC380S is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.
Data Sheet
Owners Manual
CERTIFIED NATIONWIDE COVERAGE
PTCRB certified, AT&T and T-Mobile approved Network Ready, and fully approved and tested by the leading US carrier for reliable nationwide connectivity
HIGH-QUALITY AUDIO
Digital noise suppression and high-volume speakers for excellent voice quality in loud environments. Provides high-quality digital audio performance for individual calls, group calls, and emergency calls.
INSTANT GROUP AND INDIVIDUAL CALLING
The PNC380s Push-to-Talk button initiates instant half-duplex group calling or full duplex individual calling. Supports instant group calling from Hytera Dispatch web-based communications and location tracking application
HIGH-DEFINITION LIVE VIDEO
Equipped with an 8 megapixel rear camera, the PNC380S enables real-time video streaming. Video communications improves situational awareness, and facilitates problem solving and decision making
BUILT-IN BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk rings, and other wireless accessories.
ERGONOMIC DESIGN
Compact and ergonomic design with easy-access buttons enables comfortable one-hand operation. Reversible belt clip for carrying with screen facing in or out
TEXT MESSAGING
Receive and view text messages sent from dispatcher and other Hytera PoC devices.
TFT LCD DISPLAY
TFT LCD display provides high-resolution visibility even in bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation
GPS POSITIONING
Highly accurate external GPS antenna enables speed monitoring and real-time location tracking with breadcrumbs and geofencing with the Hytera Dispatch application.
LONG-LIFE BATTERY
Powerful 4,000mAh Lithium-Ion Polymer battery delivers up to 24 hours of operation .
BUILT-IN WI-FI
Built-in Wi-Fi for flexible network access and using the MNC380 as a dispatch console.
STUN AND REVIVE
Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen
RELIABLE AND DURABLE
IP67 rated for protection from dust and water ingress up to 1 meter for 30 minutes. Compliant with MIL-STD-810-G for shock and vibration
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button to improve worker safety and emergency response time
CAR KIT
Dash-mount car kit available for safe in-vehicle calling. Features optional external speaker, palm microphone, visor microphone and remote Bluetooth Push-to-Talk
Li-Ion Battery

BP4006

PNC360 Replacement Battery BP4008
Li-Ion Polymer Battery with 24 hour operating time (4000mAh)) easily replace your battery for extended shifts or events
Belt Clip

BC50

BC51
Replacement Belt Clip
Car Kit

CK10

Hytera PNC380 Car Kit
The CK10 CAR KIT is a rugged bracket assembly that enables the PNC380S to be installed on a vehicle dashboard. The CAR KIT provides safe and legal mobile operation and can be easily removed for handheld job-site communications. The CAR KIT includes a locking bracket to ensure drivers who work inside the vehicle using the radio as a dash-mount mobile radio and not a handheld device. The CAR KIT has an on/off button for power, and ports for external speakers, microphones, and push-to-talk buttons. The CAR KIT also functions as a docking charger for the PNC380S.
Bluetooth Earpiece

EHW08

EHW08
Bluetooth Earpiece with PTT button and microphone. Compatible with Bluetooth equipped radios.
Power Block

PS2023

PS2023
Replacement USB Charging Block
6- Unit Charger

MCL35-S

6unit charger Hytera PNC380s
Multi-unit Charger PNC380S Charger up to 6 PNC380 radios at one time with the 6 unit charging station.
Bluetooth Speaker Mic

SM27W2

Hytera Bluetooth Speaker Mic
Bluetooth Speaker Mic with PTT button and microphone. Compatible with Bluetooth equipped radios.
Charging Cable

PC143

PC143
USB-C Replacement Charging Cable
Hytera Horizon PoC Subscription Service

HORIZON Nationwide

Subscription-based PoC Radios as a Service
Learn More
Hytera Horizon Dispatch

HORIZON Dispatch

Web-based PoC Dispatching Application
Learn More
System Hytera_BRIDGE_PoC_System_Nav

Hytera Bridge

PoC to DMR/Analog Radio Gateway
Learn More

General

  • Battery 4000mAh Lithium Polymer
  • Battery Life (10/10/80) Up to 48 Hours
  • Weight (with battery) 208g (with battery)
  • Dimensions (H x W x D) 5 27/32” x 2 3/8” x1 1/8” (148 x 60 x 28mm)
  • Operating System Android 7.0
  • Memory RAM: 1GB ROM: 8GB Extended: Micro SD/TF card, up to 32GB
  • SIM Card Nano SIM 12.3mm x 8.8mm
  • Display 2.0'' 320×240 TFT/Non-touch
  • Audio Power Output 1W (Rated) (Max: 2W)
  • External Interface Ports USB Type C Charging Port, 3.5mm Audio Interface
  • Positioning GPS/Galileo/AGPS
  • Ports Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface
  • Video and Images Images: 8MP

Environmental

  • Operating Temperature -4° to +140° F (-20° to +60° C)
  • Storage Temperature -22°F to +158°F (-30°C to +70°C)
  • ESD IEC 61000-4-2, (ESD) ± 12 kV (air); ± 8 kV (contact)
  • Humidity MIL-STD-810 G Certified
  • Drop Resistance 1.2m
  • Dust and Water Ingress IP67 Standard

Standards and Frequencies

  • LTE FDD:B2/B4/B5/B7/B12/B13/B25/B26
  • WCDMA B1/B2/B4/B5/B8
  • GSM 850/1900 MHz
  • Wi-Fi 2.4GHz 802.11b/g/n
  • Bluetooth BT 4.2
  • Positioning System GPS/A-GPS
